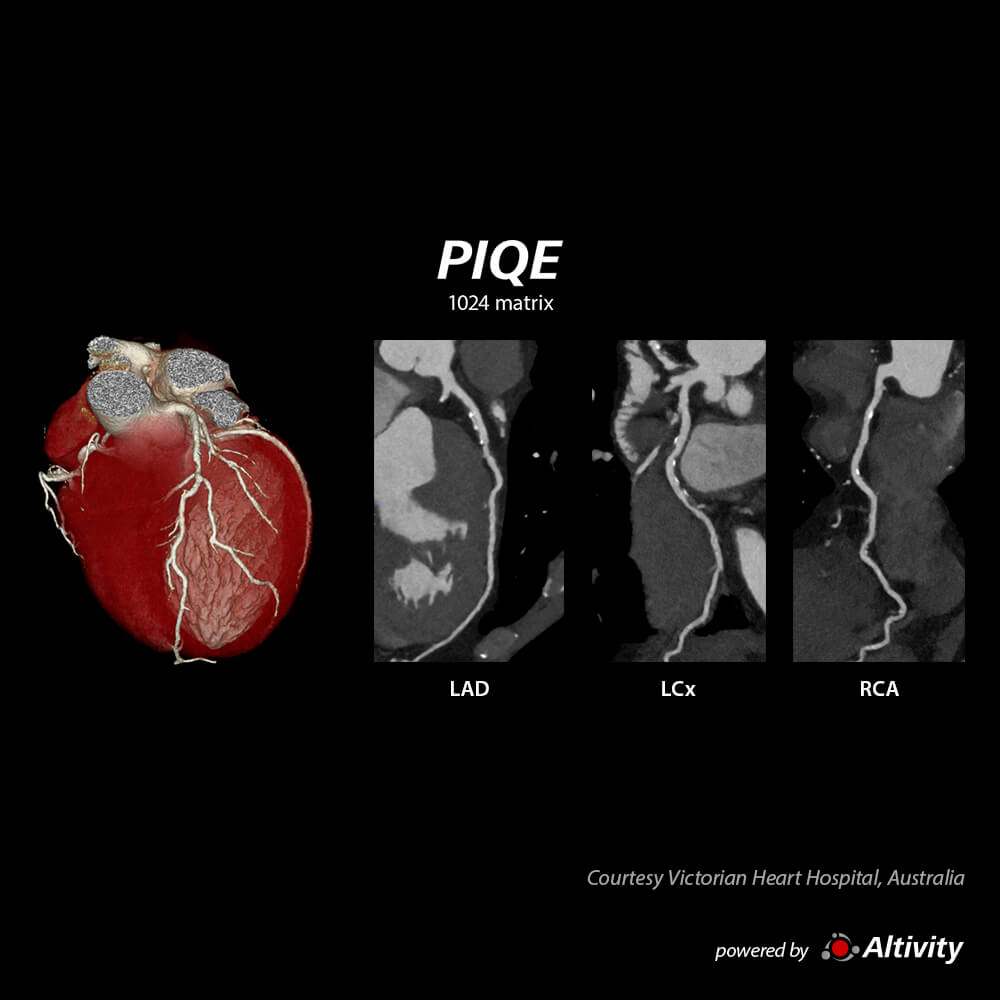

Cardiac

Aquilion ONE / INSIGHT Edition

One rotation, 16cm (0.5mm x 320) coverage of the heart in a patient with BMI 29 and a heart rate of 50bpm. PIQE images clearly demonstrate the calcified plaque in the vessels.

View Scan Parameters

Scan Mode Volume
Collimation 0.5 mm
kVp 120
mAs SUREExposure
Rotation Time 0.24s
Scan Range 160mm
Dose Reduction PIQE 1024
CTDIvol 14.9mGy
DLP 237.9mGy.cm
Effective Dose 3.3mSv
k-factor 0.014
Aquilion ONE / INSIGHT Edition Cardiac
Aquilion ONE / INSIGHT Edition Cardiac
× 拡大画像

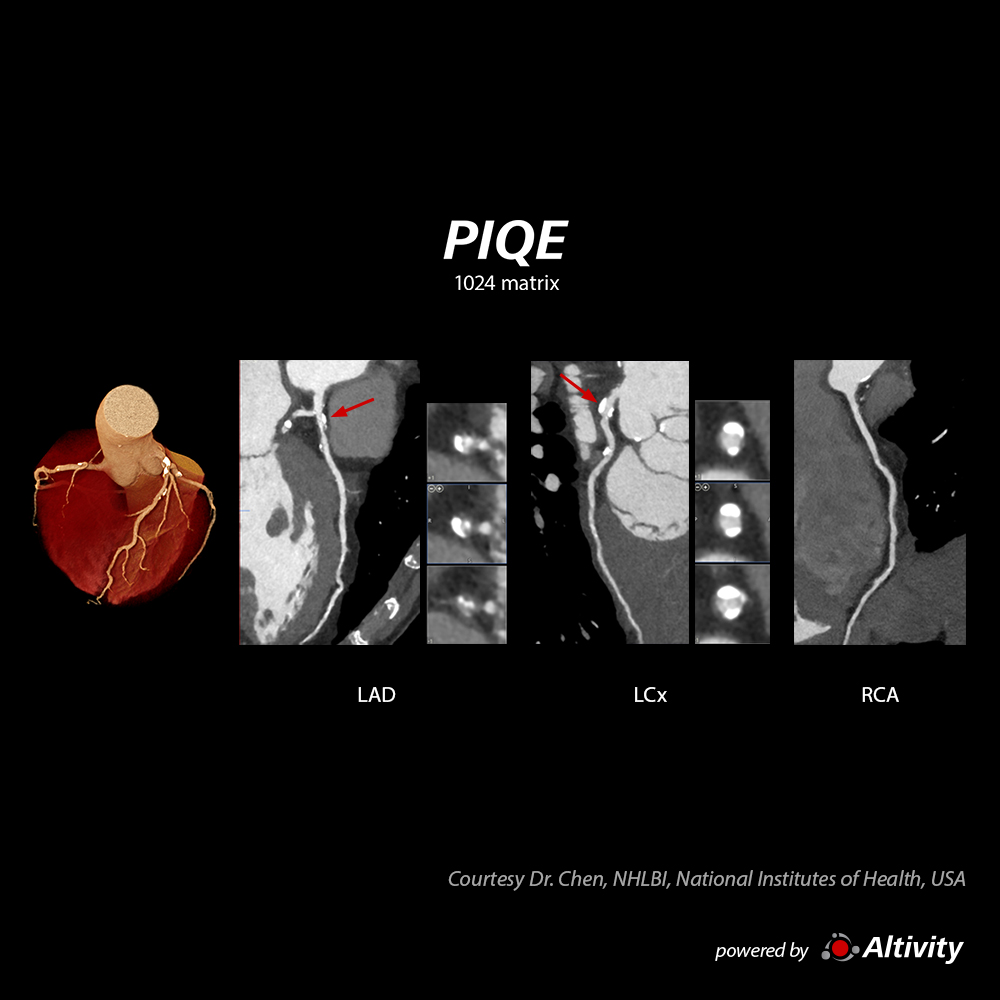

Plaque HR 62bpm

Aquilion ONE / INSIGHT Edition

Calcified plaques demonstrated in this one beat scan reconstructed with PIQE 1024.

View Scan Parameters

Scan Mode Volume
Collimation 0.5 mm
kVp 120
mAs SUREExposure
Rotation Time 0.24s
Scan Range 130mm
Dose Reduction PIQE 1024 Cardiac
CTDIvol 13.4mGy
DLP 174.4mGy.cm
Effective Dose 2.4mSv
k-factor 0.014
Aquilion ONE / INSIGHT Edition Plaque HR 62bpm
Aquilion ONE / INSIGHT Edition Plaque HR 62bpm
× 拡大画像

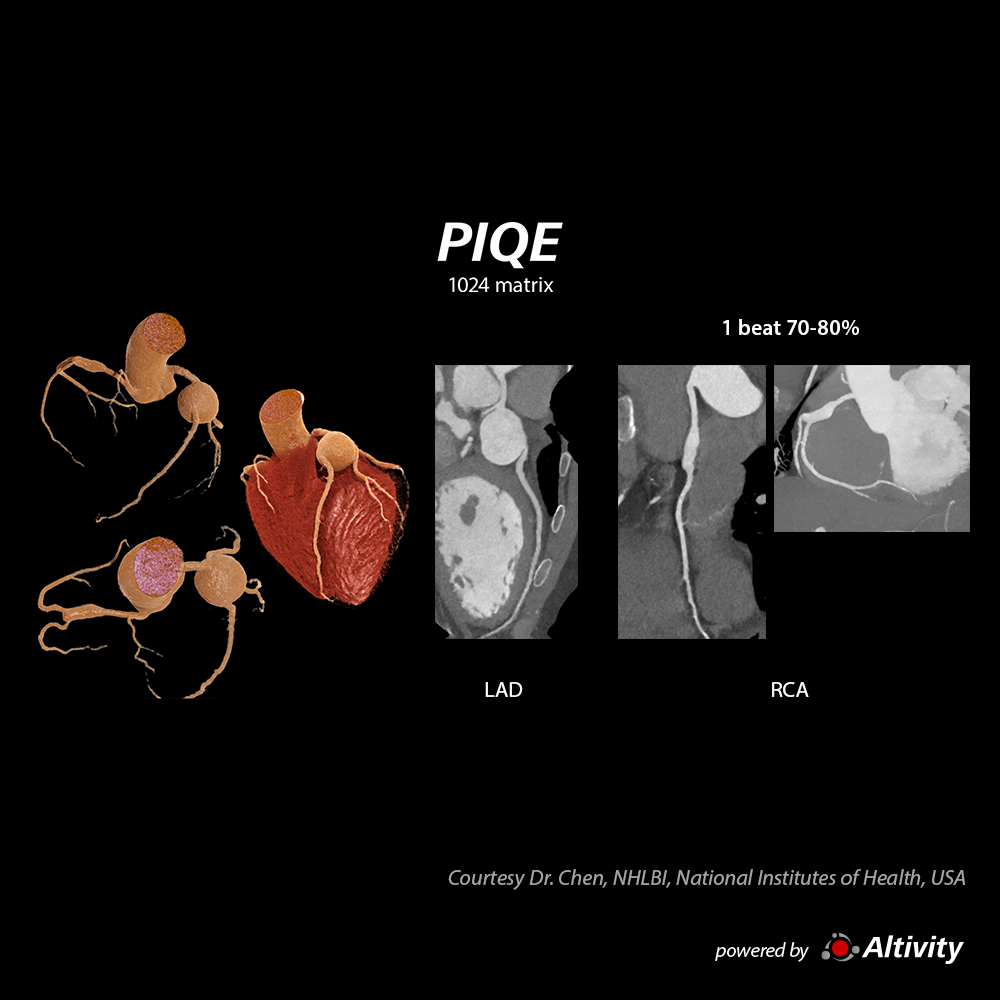

Aneurysms HR 60bpm

Aquilion ONE / INSIGHT Edition

Aneurysms are seen in the RCA and LAD

View Scan Parameters

Scan Mode Volume
Collimation 0.5 mm
kVp 100
mAs SUREExposure
Rotation Time 0.24s
Scan Range 120mm
Dose Reduction PIQE 1024 Cardiac
CTDIvol 8.4mGy
DLP 101mGy.cm
Effective Dose 1.4mSv
k-factor 0.014
Aquilion ONE / INSIGHT Edition Aneurysms HR 60bpm
Aquilion ONE / INSIGHT Edition Aneurysms HR 60bpm
